Low Voltage Insulator SM-30M8 Balanced Performance for Versatile Used for Commercial Building Electrical Systems
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part No. | SM-30M8 | Application | Commercial Building Electrical Systems |
|---|---|---|---|
| Tensile Strength(LBS) | 550 | Thread(mm) | M8 |
| Thread Depth(mm) | 11 | Torque(FT LBS) | 8 |
| Voltage Withstand | 8KV | ||
| Highlight | Durable Low Voltage Insulator,VDE Certified Low Voltage Insulator |
||
Product Description

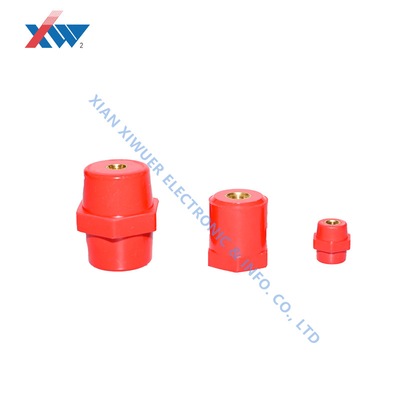

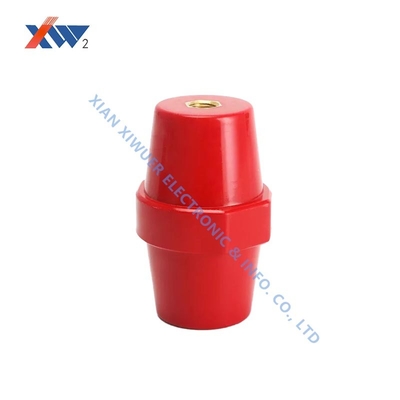

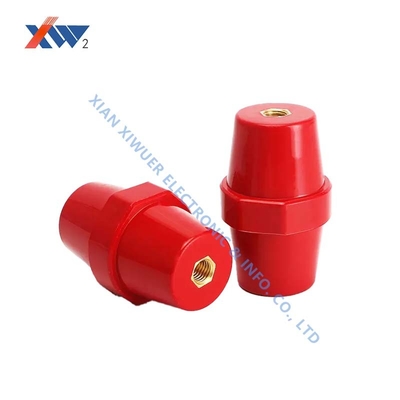

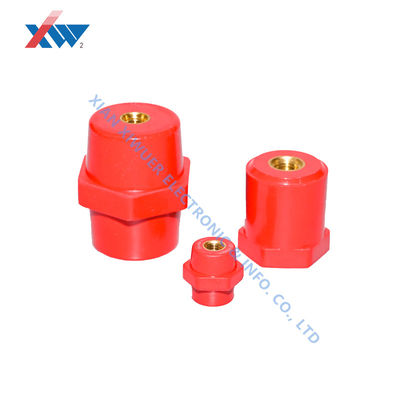

Low Voltage Insulator SM - 30M8 Balanced Performance for Versatile Used for Commercial Building Electrical Systems
Product Description:
The SM - 30 low voltage insulator is a versatile product that strikes a perfect balance between performance and cost - effectiveness.
Features:
- Reliable Material Selection: Manufactured with BMC or SMC, the SM - 30 offers excellent resistance to heat, moisture, and chemicals. The brass or steel insert ensures long - lasting mechanical integrity.
- Substantial Tensile Strength: With a tensile strength of 600 LBS, it can withstand moderate mechanical stress.
- High - Voltage Resistance: It can withstand up to 10 KV, making it suitable for a wide range of low - voltage applications. The 10 FT LBS torque value provides a stable connection.
- Standard Thread Size: The 8 - mm thread and 11 - mm thread depth are commonly used in electrical installations, facilitating easy integration into existing systems.
Technical Parameters:
|
Tensile strength(LBS) |
550 |
|
Voltage withstand(KV) |
8 |
|
Torque(FT LBS) |
8 |
|
Thread(mm) |
8 |
|
Thread depth(mm) |
11 |
Applications:
Support and Services:
The Product Technical Support and Services for the Capacitive Insulator product include:
- Assistance with installation and setup of the insulator
- Troubleshooting guidance for any technical issues
- Product training and user manuals
- Warranty information and support
- Regular maintenance recommendations
Packing and Shipping:
Product: Capacitive Insulator
Description: High-quality capacitive insulator designed to improve electrical safety in various applications.
Product Packaging:
- Each capacitive insulator is carefully wrapped in protective foam to prevent damage during transit.
- Packaged in a sturdy cardboard box with the product name and logo for easy identification.
Shipping Information:
- Shipping method: Standard shipping
- Estimated delivery time: 5-7 business days
- Shipping cost: Calculated at checkout based on location
FAQ:
Q: What is the brand name of this Capacitive Insulator product?
A: The brand name is XIWUER.
Q: What is the model number of this Capacitive Insulator product?
A: The model number is HY 1kv~35kv.
Q: Where is this Capacitive Insulator product manufactured?
A: This product is manufactured in XIAN, SHANNIXI CHINA.
Q: What is the minimum order quantity for this Capacitive Insulator product?
A: The minimum order quantity is 1 unit.
Q: What are the payment terms accepted for purchasing this Capacitive Insulator product?
A: The accepted payment terms are L/C and T/T.
