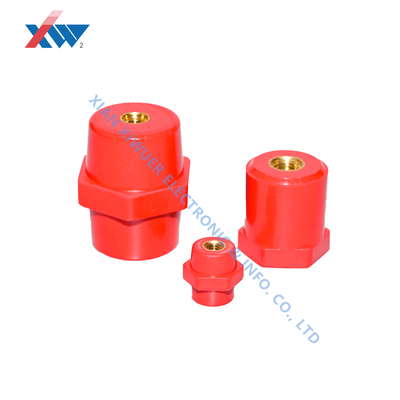

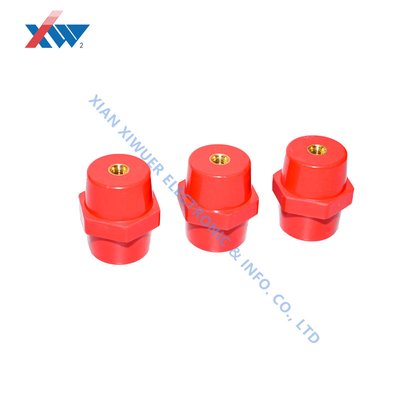

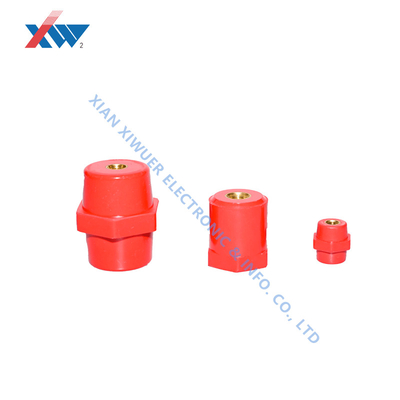

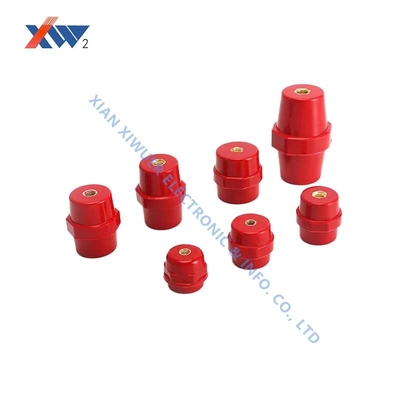

Large-scale power generation facility Busbar Insulators SM40-M8 with Mechanical Support and Enhanced Brass or Steel Insert
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tensile Strength | 650 LBS | Voltage Withstand | 12KV |
|---|---|---|---|
| Torque | 12 FT LBS | Thread | 8mm |
| Application | Light Industrial Equipment | ||
| Highlight | Mechanical Support Busbar Insulators |
||
Product Description
Large-scale power generation facility Busbar Insulators SM40-M8 with Mechanical Support and Enhanced Brass or Steel Insert
Product Description:
The SM - 40 low-voltage insulator is engineered to deliver exceptional performance in heavy - duty electrical applications.
Features:
- Premium Materials: Constructed with top - grade BMC or SMC, the SM - 40 offers superior durability and resistance to wear and tear. The brass or steel insert provides robust mechanical support.
- Extraordinary Tensile Strength: With a remarkable tensile strength of 1000 LBS, it can handle extremely high pulling forces.
- High - Voltage Withstand: It can endure up to 14 KV, making it suitable for applications with demanding electrical requirements. The 20 FT LBS torque value ensures a secure connection.
- Deep Thread Design: The 8 - mm thread and 11 - mm thread depth offer enhanced stability and load - bearing capacity.
Technical Parameters:
| Tensile strength(LBS) | 650 |
| Voltage withstand(KV) | 12 |
| Torque(FT LBS) | 12 |
| Thread(mm) | 8 |
| Thread depth(mm) | 11 |
Applications:
Support and Services:
Our Product Technical Support and Services for the Capacitive Insulator include:
- Installation assistance
- Troubleshooting guidance
- Product maintenance recommendations
- Warranty support
- Product training sessions
Packing and Shipping:
Product Packaging for Capacitive Insulator:
- The capacitive insulator is carefully packaged in a sturdy cardboard box to ensure safe transportation.
- Each unit is wrapped in bubble wrap to prevent any damage during shipping.
Shipping Information:
- Orders are typically processed and shipped within 1-2 business days.
- We offer both standard and expedited shipping options to meet your needs.
FAQ:
Q: What is the brand name of this capacitive insulator?
A: The brand name of this capacitive insulator is XIWUER.
Q: What is the model number of this capacitive insulator?
A: The model number of this capacitive insulator is HY 1kv~35kv.
Q: What certifications does this capacitive insulator have?
A: This capacitive insulator is certified with ISO9001, ISO14001, and OHSAS18001.
Q: Where is this capacitive insulator manufactured?
A: This capacitive insulator is manufactured in XIAN, SHANNIXI CHINA.
Q: What are the payment terms for purchasing this capacitive insulator?
A: The payment terms for purchasing this capacitive insulator are L/C and T/T.
