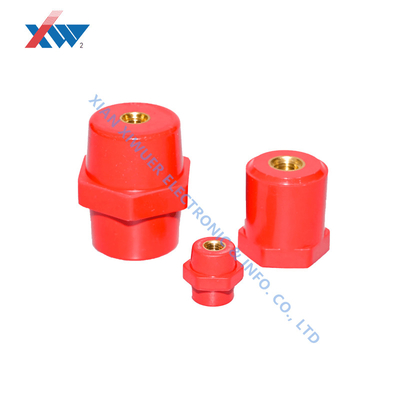

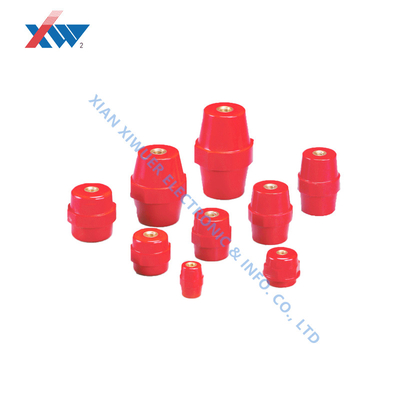

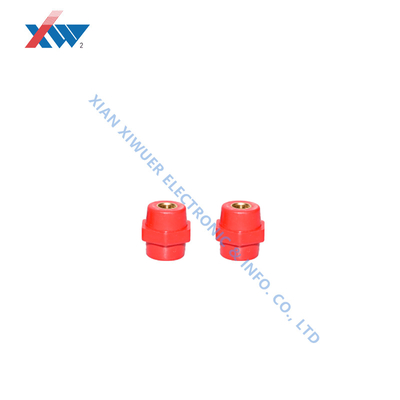

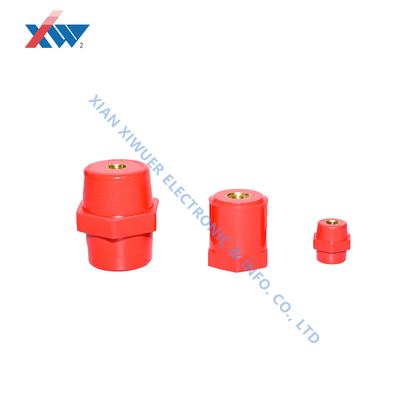

Low voltage insulator SM-20 used for low voltage power distribution panel with exceptional Tensile Strength 5KV Voltage Withstand
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Height | 20mm | Tensile Strength | 300LBS |
|---|---|---|---|
| Thread | M5 | Thread Depth | 7mm |
| Application | Low - Voltage Power Distribution Panels | ||
| Highlight | 5KV Voltage Withstand Insulator |
||
Product Description
Low voltage insulator SM-20 used for low voltage power distribution panel with exceptional Tensile Strength 5KV Voltage Withstand
Product Description:
Low Voltage Insulator SM-20: A Compact and Reliable Solution
Features:
- High - Strength Materials: Made from BMC (Bough Moulding Compound) or SMC (Sheet Moulding Compound), the SM - 20 can withstand harsh environmental conditions. Its insert is available in brass or steel, ensuring excellent mechanical stability.
- Impressive Tensile Strength: With a tensile strength of 500 LBS, it can endure significant pulling forces without deformation or failure.
- Good Electrical Performance: It has a voltage withstand capacity of 6 KV, making it suitable for low - voltage electrical systems. The torque value of 6 FT LBS allows for secure fastening.
- Optimal Thread Design: The 6 - mm thread and 9 - mm thread depth provide a reliable connection, ensuring that the insulator remains firmly in place during operation.
Technical Parameters:
| Tensile strength (LBS) | 300 |
| Voltage withstand(KV) | 5 |
| Torque(FT LBS) | 4 |
| Thread(mm) | 5 |
| Thread depth(mm) | 7 |
Applications:
Support and Services:
The Product Technical Support and Services for the Capacitive Insulator product are designed to assist customers with any issues or questions they may have regarding the product. Our team of technical experts is available to provide guidance on installation, troubleshooting, and maintenance of the Capacitive Insulator. Additionally, we offer training and product demonstrations to ensure customers are able to maximize the performance and efficiency of the product.
Packing and Shipping:
Product Packaging:
The Capacitive Insulator is carefully packaged in a sturdy cardboard box to ensure its safety during shipping. Each insulator is wrapped in protective bubble wrap to prevent any damage during transit.
Shipping Information:
We ship our products using reliable courier services to ensure timely delivery. The Capacitive Insulator will be securely packed and shipped within 1-2 business days of placing your order. You will receive a tracking number to monitor the delivery status of your package.
FAQ:
Q: What is the brand name of this Capacitive Insulator product?
A: The brand name is XIWUER.
Q: What is the model number of this Capacitive Insulator?
A: The model number is HY 1kv~35kv.
Q: Where is this Capacitive Insulator manufactured?
A: It is manufactured in XIAN, SHANNIXI CHINA.
Q: What are the accepted payment terms for purchasing this product?
A: The accepted payment terms are L/C and T/T.
Q: What is the minimum order quantity for this Capacitive Insulator?
A: The minimum order quantity is 1 unit.
