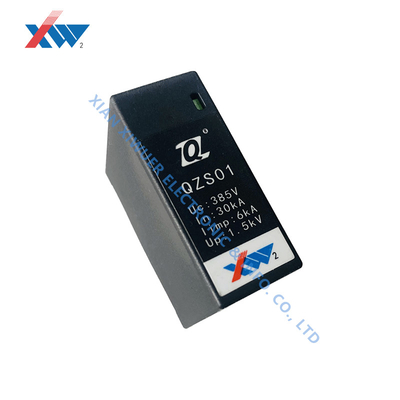

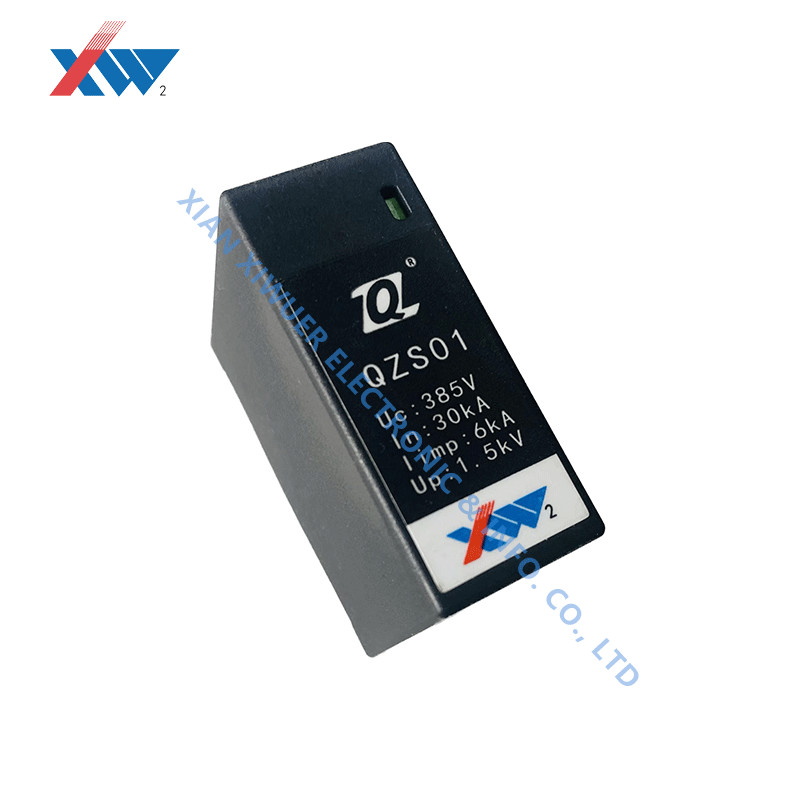

Multilayer Graphite Gap Power Supply Lightning Surge Protector Laminated Multi-Point Trigger

  • Multilayer Graphite Gap Power Supply Lightning Surge Protector Laminated Multi-Point Trigger
  • Multilayer Graphite Gap Power Supply Lightning Surge Protector Laminated Multi-Point Trigger
  • Multilayer Graphite Gap Power Supply Lightning Surge Protector Laminated Multi-Point Trigger
  • Multilayer Graphite Gap Power Supply Lightning Surge Protector Laminated Multi-Point Trigger
Place of Origin XIAN,CHINA
Brand Name Qing Zhu
Certification UL,TUV,CCC,ROHS
Model Number QZS01-385/30(S)
Minimum Order Quantity 1 unit
Price USD, Negotiable, unit
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 4,000,000 units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Operating Voltage-U0 250VAC（50/60Hz） Maximum Continuous Operating Voltage-Uc 385VAC（50/60Hz）（L-N）
Voltage Protection Level-Up 1.5kV Response Time-ta 100ns
Limited Voltage-UL ≤0.65kV，（After 10/350,10μs） Operating Temperature（℃） -40℃～+105℃
Highlight

Graphite Gap Power Supply Lightning Protector

,

Multilayer Lightning Surge Protector

,

Laminated Graphite Gap Surge Protector
Leave a Message
Product Description

QZS01-385/30(S) multi-layer graphite gap power supply lightning protector, which adopts laminated graphite gap and multi-point trigger technology inside,which improvesprotection level against transient surges. Therefore, it can be used for low-voltage power supply and distribution systems and electrical equipment to provide Class B (Class I classification test) lightning protection. The product has a built-in overtemperature and overcurrent protection function, with a remote signal alarm interface (dry contact), which is convenient for remote monitoring of surge protective device status.



Features

  • Greatly improves the protection level against transient surges
  • The product has built-in overtemperature and overcurrent protection function
  • With remote signal alarm interface (dry contact), which is convenient for remote monitoring of surge protective device status

Application



It can be used for low-voltage power supply and distribution systems and electrical equipment to provide Class B (Class I classification test) lightning protection.



Technical Parameters

Item Technical data
SPD category ClassⅠ
Standard operating voltage-U0 250VAC(50/60Hz)
Maximum continuous operating voltage-Uc 385VAC(50/60Hz)(L-N)
Response time-ta 100ns
Nominal discharge current-In(8/20μs) 30kA(4 consecutive tests of 5 positive and negative times each, 90 seconds between times, 5 minutes between groups)

Pulse discharge current -Iimp

(10/350μs)

 6kA(4 groups of positive and negative tests with 5 times each, 90 seconds between times, and 5 minutes between groups)
voltage protection level-Up 1.5kV
Limited voltage-UL ≤0.65kV,(After 10/350,10μs)
Rated disconnected freewheeling value-Ifi 1.5kA(385VAC) ,6 kA (275 VAC), 3 kA(320 VAC)
Transient overvoltage characteristics-UT

(1) 1420V/300A/200ms, 440V 120ms, resistant or blurted, no fire;

(2) The lightning protector is powered on 1500Vac/20A, so that the graphite gap action conducts the current, the voltage is continuously applied until the trip stops after 1 minute, to verify the reliability of the trip, the device can appear shell deformation, a small amount of smoke, can not fire and burn.
Operating voltage ≤2.2kV

Electrical strength

(Power port to signal port)

1. Electrical strength requirements:

Passed the 4300VDC electrical strength test, time 1min. No breakdown and no arcing, leakage current is less than 1mA.

2. Test conditions

(1) Room temperature conditions

(2) High humidity test conditions: ambient temperature 40 °C, humidity 95%, storage 120h
Maximum operating current of the alarm port Max:250V/0.5A(AC)0.1A(DC)；Min:12Vdc/1mA
Response time ≤100ns
Whether a failure blur is required Yes
Flame retardant rating UL94 V-0
Remote signaling contact type Dry contact
Contact definition Normally closed (passive node)


Environmental and service requirements



Seq.No Item Technical data Remark
1 Operating temperature(℃) -40℃～+105℃
2 Transport storage temperature(℃) -50℃～+105℃
3 Relative humidity(％) 5%~95%(25℃)
4 Applicable altitude(m) ≤5000m
5 Moisture sensitivity class Level 1(≤30℃/85%RH)
6 Low pressure charge test According to 5000 meters 54kPa, 55℃, plus Uc voltage test for 8 hours. Electrical performance meets specification
7 Lightning arrester power-on test 1500Vac/20A, causing the graphite gap to operate to conduct current, and the voltage continues to be applied until it stops after tripping for 1 minute. Reliable tripping, the device can experience shell deformation, a small amount of smoke, and cannot catch fire.
8 Vibration

Vibration during transportation with packaging, root mean square acceleration Grms=1.15g, 30 minutes in each of three axes

frequency(Hz) Power Spectral Density(g2/Hz)
1.0 0.0001
4.0 0.01
100.0 0.01
200.0 0.001




Electrical performance

meets specification
Packaging drop: Drop surface: 1, 2, 3, 4, 5, 6; Drop edge: 2-3, 2-5, 5-3; Drop angle: 1-2-6, 1-4-5, 2- 3-5, 3-4-5; drop once each on the top, edge, and corner.
Sinusoidal vibration after installation and fixation: 5Hz~9Hz, 1.2mm, 9Hz~200Hz, 0.4g, sweep rate is not more than 1 octave per minute, 5 cycles in each of the three axes.
Random vibration after installation: 5Hz-10Hz, +12dB; 10Hz-50Hz,0.04m2/S3； 50Hz-100Hz, -12dB, 30 minutes in each direction in three axes.
9 Safety regulations IEC60950/ EN60950 Meets requirements
