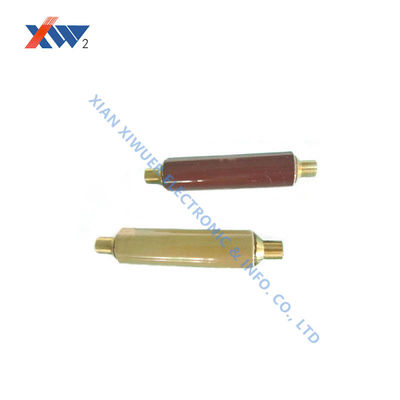

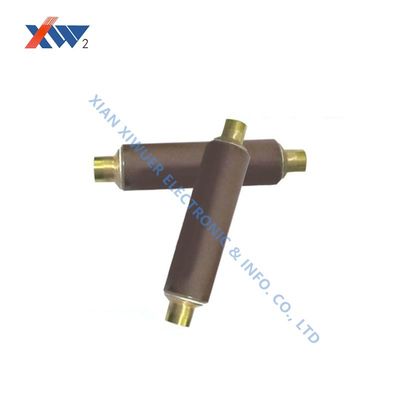

XIWUER 2D4 Hv Ceramic Capacitors High Voltage Radial Ceramic Capacitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Storage Temperature | -25°C To +85°C | Product Name | High Voltage Ceramic Capacitor |
|---|---|---|---|
| Dimension | 14.8mm*22mm | Color | Brown, Red |
| Measuring Voltage | 1V±0.2V | Measuring Frequency | 1KHz±20% |
| Ceramic Material | (Y5T)2D4 | Brand | XIWUER |
| Highlight | 2D4 Hv Ceramic Capacitors,Hv Ceramic Capacitors 1.2V,High Voltage Radial Ceramic Capacitor |
||
Product Description
Product Description:
High Voltage Ceramic Capacitor is a voltage ceramic device, which is especially designed for high voltage applications. It is a reliable and robust device, which is capable of providing high ripple current up to 1.2A. It is well-suited for providing high voltage protection and surge protection in different equipment and systems. The package type of this device is radial with lead spacing of 5mm. It has a dielectric strength of 2000VAC, making it perfect for high voltage applications. This High Voltage Ceramic Capacitor is available for sale with different specifications and features. It is a reliable and cost-effective solution for protecting your equipment from high voltage damage.
High Voltage Ceramic Capacitor is an ideal choice for providing robust protection against high voltage surge and spikes. The 2000VAC dielectric strength ensures that the capacitor is able to withstand high voltage surges and spikes without any damage. The radial package type and 5mm lead spacing make it easy to install and use. With its high ripple current up to 1.2A, it is perfect for providing high voltage protection in different applications. This High Voltage Ceramic Capacitor is a reliable and cost-effective solution for protecting your equipment from high voltage damage.
Features:
- Product Name: High Voltage Ceramic Capacitor
- Size: 14.8mm X 22mm
- Measuring Voltage: 1V±0.2V
- Measuring Frequency: 1KHz±20%
- Brand: XIWUER
- Voltage Ceramic Capacitor manufacturers
- Voltage Ceramic Device
- Voltage Ceramic Device Manufacturers
Technical Parameters:
| Parameter | Value |
|---|---|
| Temperature Coefficient | ±15ppm/°C |
| Brand | XIWUER |
| Package Type | Radial |
| Ripple Current | 1.2A |
| Insulation Resistance | 3000MΩ |
| Voltage Rating | 1000V |
| Tolerance | -20%-80% |
| RoHS Compliant | Yes |
| Capacitance | 220pF |
| Lead Spacing | 5mm |
Applications:
XIWUER High Voltage Ceramic Capacitor (CT8-2) is a top-of-the-line component that offers superior performance and reliability for a variety of applications. This ceramic capacitor has a capacitance of 220pF and a package size of 13.2mm X 22mm. With its radial package type, it is designed to withstand high voltage levels and is suitable for use in a wide range of applications. The storage temperature of this capacitor ranges from -25°C to +85°C. It also has a low profile, making it perfect for tight spaces.
This high voltage ceramic capacitor is manufactured to ISO9001, ISO14001, ISO45001, and CCC standards and is available in two colors - brown and red. It is easy to install and comes with a minimum order quantity of 1 unit. The price is negotiable and it comes with a one year warranty. The delivery time is 5-8 days and payment terms include L/C, T/T. XIWUER is capable of producing up to 4,000,000 units a year.
XIWUER High Voltage Ceramic Capacitors are ideal for use in a wide range of applications, such as power supplies, audio amplifiers, and automotive electronics. It is also great for use in voltage regulator circuits, power converters, and motor drives. With its reliable performance and long life, this capacitor is a great choice for any project requiring high voltage ceramic components.
Customization:
Customized High Voltage Ceramic Capacitor
XIWUER is a professional high voltage ceramic capacitor manufacturers with ISO9001, ISO14001, ISO45001 and CCC certification. We provide customized high voltage ceramic components with model number CT8-2. It is a Y5T ceramic material with 1.2A ripple current and 220pF capacitance. It is made in XIAN,CHINA with high quality. The minimum order quantity is 1 unit. The price is negotiable and the packaging details are carton. The delivery time is 5-8 days. The payment term is L/C, T/T. The supply ability is 4,000,000 units a year.
If you are looking for high voltage ceramic capacitor, XIWUER is a great choice for you. Contact us now for more details about our high voltage component.
Support and Services:
High Voltage Ceramic Capacitor Technical Support and Services
We provide technical support and services for our High Voltage Ceramic Capacitor products. Our team of experts will help you find the best solutions to meet your needs.
Our technical support and services include:
- Assistance with product selection and design
- Installation and maintenance guidance
- Product testing and validation
- Troubleshooting and repair
- Product documentation and manuals
- Product warranty and support options
Our team is available to answer any questions you may have about our High Voltage Ceramic Capacitor products. Please contact us today to learn more about how we can help you.
