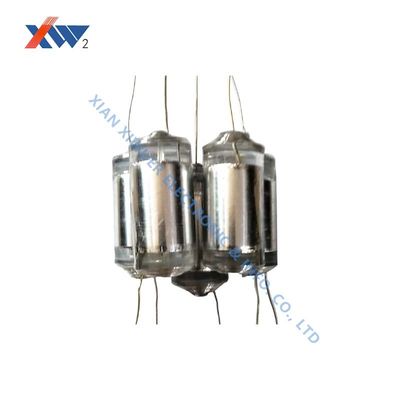

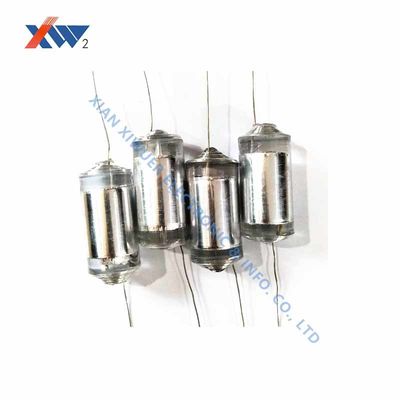

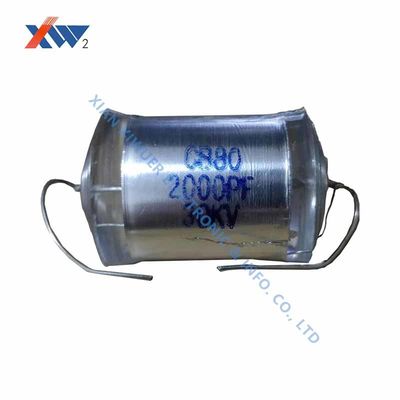

CB80 30KV AC High Voltage Polystyrene Film Capacitor 2000 PF

 CB80 30KV AC 2000 PF High Voltage Polystyrene Film Capacitor

Features

The capacitor is a non-sealed foil structure with high withstand voltage and small size.

Applications

• Suitable for DC pulsation circuits such as filtering and voltage doubling in electronic equipment.
• For capacitors whose rated DC voltage is greater than or equal to 20KV, they must be immersed in non-aromatic pure mineral oil or silicone rubber and other insulating materials.

Technical Parameters

1. Operating Temperature Range: -10℃--+55℃
2. Rated Voltage : 10KV--50KV
3. Capacitance Tolerance:±5%,±10%,±20%
4. Capacitance Range: 180pf--5000pf
5. Insulated Resistance: ≥2×10⁵MΏ
6. Withstand Voltage: 10-20KV 1.5Un ≥20KV 1.2Un
7. Durability:+55℃,apply Un 96h,after 24h recovery, the capacitance change rate should be: △C/C≤(2.5%+3PF)
8. Insulated Resistance: not less than 50% of the specified value rated voltage nominal capacitance and size Correspondence table
