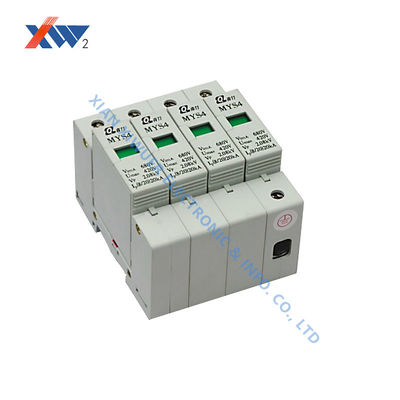

MYS4 420/20(L/N PE) AC Power Surge Protector 40kA 420V 20KA

  • MYS4 420/20(L/N PE) AC Power Surge Protector 40kA 420V 20KA
Place of Origin XIAN,CHINA
Brand Name Qing Zhu
Certification UL,TUV,CCC,ROHS
Model Number MYS4-420/20(L/N-PE)
Minimum Order Quantity 1 unit
Price USD, Negotiable, unit
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 4,000,000 units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Zinc Oxide Arrester Application Class 3nd&4th Protection In All Kinds Of Power Supply System
External Dimension(mm) 18x90x62 Trademark XIWUER
Highlight

MYS4 ac power surge protector

,

ac power surge protector 40kA

,

ac surge protector 420V
Leave a Message
Product Description

MYS4 420/20(L/N PE) 40kA 420V 20KA AC Power Surge Protector applied to class 3nd&4th protection

Features

  • High withstanding surge current(10KA, 20KA), low clamping voltage
  • Fast response(≤25ns)

  • With a safe design. The power network will be off automatically in case of over-load or failure

  • Good indication of failure, and with remote monitoring alarm function.

  • Combination structure (e.g. 2,3,4,6,7 modules combination )facilitates the different designs for various protective means.

Application



MYS4 type over voltage protector is mainly applied to class 3nd&4th protection in all kinds of power supply system.



Technical Parameters



Item Class D Class C
Model Number

MYS4-385/10(L-N)

 FD2(N-PE) MYS4-420/20(L/N-PE)

MYS4-385/20(L-N)

FD2

(N-PE)

Max.Continuous Voltage

Uc(AC)

 385V 255V 420V   255V

Rated Impulse Discharge

Current(8/20μ s) In

 10kA 30kA 20kA 20kA 40kA

Max.Impulse

Discharge

Current(8/20 μ s) Imax

 25kA 60kA 40kA 40kA 60kA

Protection

Level at In(8/20 μ s)

 1.5kV 1.5kV 2.08kv 1.90kV 1.8kV
Response Time t <25ns <100ns <25ns <100ns
External Dimension(mm 18x90x62(IP reference)
Installation Pattern Mounted on 35mm width standard rails



MYS4 420/20(L/N PE) AC Power Surge Protector 40kA 420V 20KA 0

MYS4 420/20(L/N PE) AC Power Surge Protector 40kA 420V 20KA 1

COMPANY OVERVIEW



      Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city cover in an area of 4000 ㎡, with employees of 2300, and about 580 technicians, amongthem, there are 135 engineers, 21 senior engineers. The company has total assets of 315 million RMB Yuan, fixed assets of 137 million RMB Yuan, which is a large enterprise mainly engaged in producing electronic components. The company has the largest production scale of Varistor,SPD( Surge Protective Device)and HV Ceramic Capacitor in China, with the following main products :

1. Varistors & SPD

2. HV Ceramic Capacitor
3. Capacitive Voltage Divider

4. Thermistor

       The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland etc. The annual production capacity of the two leading products has been reached to 5 million pcs and 150 million pcs respectively, with the market holding rate in China of about 10% and 30% respectively by continually technical innovation. Varistors and SPD produced by the company enjoyed great reputation in the international market, being exported to many countries and areas such as Japan,USA, Hong Kong etc., with the customers like India and GE in USA. are already sold to LG company in Korea with large quantity, and also to Spainand India etc.

       Not only the products quality and technical capacity, but also the completeness of the models are all in the leading place in China. The main products have got CCEE, UL, VDE & TUV approval. The quality system was set up according to the requirement of ISO9000 since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then got ISO9001 certification by British organization in 2000, by then we are both the first one who are approved by ISO9000 certification in the North-west area of China and the same occupation. We passed all the successive periodical audit and smoothly get the new certificate registered in Holland in Aug.1997; the quality system is strengthened and completed constantly. And we also got ISO18000 certificate.

       We believe we are able to supply satisfied goods and service to customers home and abroad with the most reasonable price and the shortest delivery time, on basis of our excellent quality assurance capacity, technical development capacity and rich manufacturing experiences.



CERTIFICATE

MYS4 420/20(L/N PE) AC Power Surge Protector 40kA 420V 20KA 2MYS4 420/20(L/N PE) AC Power Surge Protector 40kA 420V 20KA 3MYS4 420/20(L/N PE) AC Power Surge Protector 40kA 420V 20KA 4
